Lub puab tsaig Plate Rau Crusher
Kev khiav hauj lwm 42,000 m² kev koom ua ke foundry, Duma tsis yog lub tuam txhab lag luam tab sis lub tuam txhab tsim khoom ncaj qha. Peb tshwj xeeb hauv OEM crusher spare qhov chaw nrog rau kev tsom mus rau 20%-40% ncua kev pab cuam lub neej los ntawm peb cov tswv cuab "Teb-Cua Kub" kev kho cua sov.
Lub puab tsaig Plate Rau Crusher - Chaw tsim tshuaj paus Taw qhia
Lub puab tsaig Plate rau Crusher yog ib qho tseem ceeb ntawm cov khoom siv hauv lub puab tsaig crushers los tsoo cov pob zeb nyuaj thiab cov ore los ntawm kev compression.
Jiangxi Duma Machinery Manufacturing Co., Ltd. yog cov chaw tsim khoom lag luam ntawm lub puab tsaig crusher coj qhov chaw, tshwj xeeb hauv siab -manganese steel lub puab tsaig phaj ua nyob rau hauv peb ISO- ntawv pov thawj foundry. Tsim los rau kev ua haujlwm siab thiab kev ua haujlwm ntev, Duma lub puab tsaig phaj yog dav siv hauv kev tsuas, quarrying, thiab aggregate crushing kev lag luam thoob ntiaj teb.
Duma's "Zero-Defect" Quality Barrier
Txhua lub puab tsaig phaj tau dhau los ua ntau yam -theem soj ntsuam txheej txheem hauv peb hauv- lub tsev kuaj mob:
PT (Penetrant Testing)
Yuav tsum tau kuaj xyuas qhov tawg kom ntseeg tau tias "cov tawv nqaij zoo meej" ua ntej lub phaj ntsib siab - cuam tshuam kev ntxhov siab.
UT (Ultrasonic Testing)
Internal flaw nrhiav kom tshem tawm cov roj qhov los yog slag inclusions.
Metallographic Analysis
Kev pov thawj ntawm 100% ntshiab Austenitic qauv rau kev ua haujlwm siab tshaj plaws - hardening peev xwm.
Kev kuaj Hardness
Tau lees paub thawj zaug HB200, nce mus rau HB500+ thaum ua haujlwm.
Qhov zoo ntawm Duma Puab Tsaig Plate Rau Crusher
High -Cov ntaub ntawv zoo
Mn13, Mn18, Mn22 siab-manganese hlau, xaiv cov hlau hloov kho
Kev Pabcuam Lub Neej
Feem ntau 20-40% ntev dua li cov pa manganese lub puab tsaig daim hlau.
Hnav Kev Ua Haujlwm
Ua haujlwm-cov nyhuv hardening nyob rau hauv kev cuam tshuam, ruaj khov profile
Haum Qhov tseeb
Kev soj ntsuam nruj me ntsis kom phim OEM crusher qauv
100% Fit Guarantee nrog 4, 000+ Cov Tsev Qiv Ntawv Qauv
Leveraging peb lub tsev qiv ntawv loj ntawm 4,000+ cov qauv precision, peb muab 100% hloov pauv lub puab tsaig phaj rau txhua lub npe loj thoob ntiaj teb yam tsis muaj nqi molding ntxiv.
Mekas: C80, C100, C110, C125, C140, C160, C200, thiab lwm yam.
Sandvik: CJ411, CJ412, CJ612, CJ613, CJ615, CJ815, thiab lwm yam.
Terex/Powerscreen: XA400, XA750, Premiertrak 400/600.
Lwm Hom: Symons, Telsmith, Kleemann, Trio, thiab lwm yam.
Kev Pabcuam Kev Cai: Peb txhawb Reverse Engineering los ntawm koj cov qauv hnav lossis cov duab kos qub.
Product Structure & Specifications
Tsau & viav vias lub puab tsaig phaj
Peb muab cov khoom tiav. Lub Phaj Tiav tiv thaiv cov ncej crusher, thaum Movable (Swing) Phaj siv lub zog crushing.
Optimized hniav Profiles
Txheem, Corrugated, lossis Hnyav-Cov hniav txhuam hniav muaj rau haum rau ntau hom pob zeb (Granite, Basalt, River Stone).
Kev ua tau zoo
Peb Cov Manganese Puab Tsaig Crusher Cov Khoom Siv Hluav Taws Xob tau sim rau kev poob siab, kev ntxhov siab, thiab kev thauj khoom kub, kav ntev li 20-40% ntev dua li cov paib hauv PE series crushers.
Vim Li Cas Xaiv Peb
Pab neeg muaj kev paub
Peb pab neeg ua haujlwm engineers thiab cov kws tshaj lij muaj ntau xyoo dhau los hauv kev lag luam, thiab peb siv cov kev txawj ntse los muab peb cov neeg siv khoom nrog cov kev daws teeb meem zoo tshaj plaws.
Lub Sijhawm Lead
Cov qauv qauv (C100, C125, thiab lwm yam) hauv Tshuag rau 7-10 hnub shipping. Kev cai qhov chaw hauv 35-45 hnub.
Muaj peev xwm
Lub hli tso zis ntawm1,000 tonskom ruaj khov khoom rau kev txiav txim lag luam wholesale.
Tus nqi sib tw
Peb muaj cov kws tshaj lij kev pabcuam thiab pab pawg kws tshaj lij, siv zog los txo tus nqi thiab nyiaj tau los thiab muab tus nqi zoo rau koj.
Tus nqi tswj
Tus nqi Hoobkas ncaj qha (Tsis muaj Tus Neeg Nruab Nrab) txuag koj 15% -25% ntawm tus nqi yuav khoom piv rau OEM cov tswv lag luam.
Ib qho kev daws teeb meem
Los ntawm qhov pib nug thiab thoob plaws tag nrho cov txheej txheem kom txog rau thaum koj tau txais cov khoom. peb tau mob siab rau txhawb nqa koj txhua kauj ruam ntawm txoj kev.
Tau txais Daim Ntawv Tso Cai rau Lub Puab Tsaig
Dab tsiKhoom sivLub puab tsaig tuaj yeem ua los ntawm
Kev xaiv ntawm cov khoom siv rau lub puab tsaig crusher daim hlau nyob ntawm seb yam khoom xws li hom khoom raug crushed, qib ntawm abrasiveness, thiab crusher lub hom phiaj daim ntawv thov. Qee cov khoom siv siv rau lub puab tsaig phaj muaj xws li:
- Manganese hlau:Manganese steel daim hlau yog dav siv vim lawv zoo heev hnav tsis kam thiab toughness. Lawv tsim nyog rau crushing cov ntaub ntawv nrog nruab nrab mus rau siab abrasiveness thiab feem ntau siv nyob rau hauv quarries thiab mining ua hauj lwm.
- High Chrome Hlau:High chrome hlau daim hlau muaj qhov tshwj xeeb hnav tsis kam, tshwj xeeb tshaj yog thaum cuam tshuam nrog cov ntaub ntawv zoo li granite lossis basalt. Lawv feem ntau siv rau hauv cov ntawv thov uas cov khoom raug crushed yog abrasive heev.
- Carbon Steel:Cov pa roj carbon steel phaj yog tus nqi - kev xaiv zoo thiab feem ntau yog siv thaum cov khoom raug crushed yog abrasive tsawg, xws li hauv cov ntawv thov rov ua dua. Txawm hais tias lawv yuav tsis muaj tib theem ntawm kev hnav tsis kam xws li manganese steel lossis siab chrome hlau, lawv tsim nyog rau qee qhov xwm txheej.
- Tungsten Carbide:Tungsten carbide daim hlau paub txog lawv qhov tshwj xeeb hardness thiab tsis kam hnav. Lawv feem ntau yog siv rau hauv cov ntawv thov uas yuav tsum tau hnav tsis kam, xws li hauv kev lag luam mining.
- Cov khoom siv sib xyaw:Qee lub puab tsaig phaj yog tsim los ntawm cov ntaub ntawv sib xyaw uas sib xyaw ua ke ntawm cov khoom sib txawv kom ua tiav qhov xav tau hnav thiab ua haujlwm ntev.
|
Khoom siv |
Manganese Cov ntsiab lus |
Kev siv tsim nyog |
|
Mn13 |
13% |
Cov pob zeb mos, tsawg- cov ntaub ntawv puas |
|
Mn 18 |
18% |
Granite, basalt, thiab kev mining |
|
Mn 22 |
22% |
Pob zeb nyuaj, siab - tej yam kev mob cuam tshuam |
|
TIC Insert |
Composite |
Kev siv abrasive heev |
Yog vim li cas thiaj tau lub puab tsaig phaj ncaj qha los ntawm Duma
Tsis zoo li cov tuam txhab lag luam, Duma Machinery ua haujlwm nws tus kheej qhov chaw tsim khoom thiab chaw ua haujlwm uas npog ntau dua 42,000 m². Los ntawm kev tshuaj xyuas cov khoom siv raw mus rau kev kho cua sov thiab kev sim zaum kawg, tag nrho lub puab tsaig phaj yog tsim nyob rau hauv - lub tsev, ua kom zoo ib yam, ruaj khov, thiab kev traceability.
Ntiaj teb no Logistics & Lag luam wholesale Support
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Yooj yim MOQ
Peb lees txais kev txiav txim me me (1 daim) rau kev kuaj zoo.
Ib -Stop Logistics
Kev them nyiaj yug tag nrho nrog Qhov Rooj-rau-Qhov rooj (DDP/DDU) xaiv rau Tebchaws Meskas, Australia, South Africa, thiab Canada.
Traceability

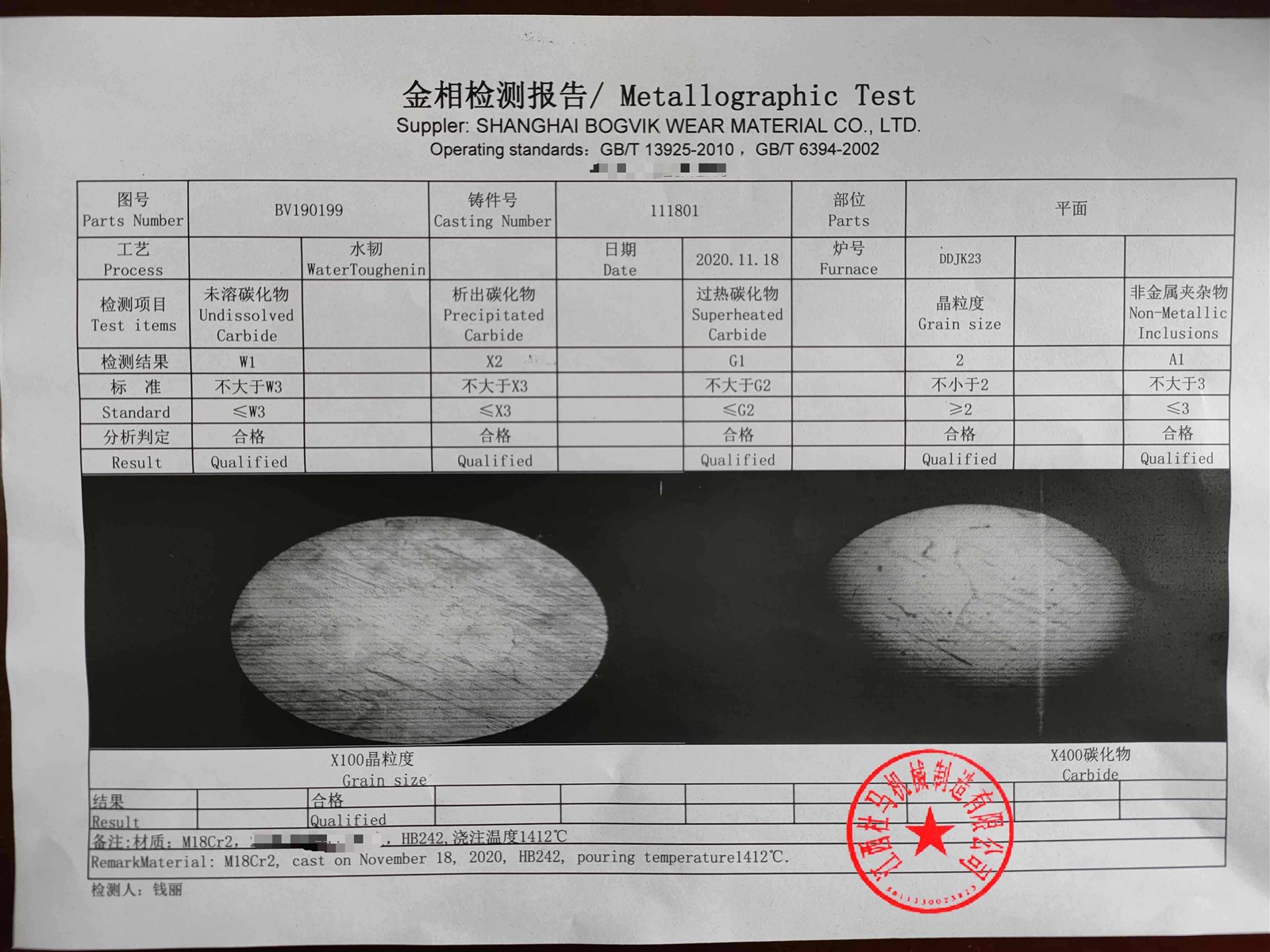

Txhua qhov kev xa khoom muaj xws li daim ntawv pov thawj kev kawm tiav: Cov Khoom Siv Ntawv Pov Thawj, Kev Kho Mob Kub Kub, thiabPT/UT Kev tshuaj xyuasTshaj tawm.
Yuav Ua Li Cas Ntxiv Lub Puab Tsaj Phaj Kev Pabcuam Lub Neej
- Lub puab tsaig phaj muaj qhov tsim nyog tsim thiab xaiv cov khoom siv.
Thaum tsim lub puab tsaig phaj, lub ncov thiab cov kwj deg ntawm lub puab tsaig txav tau thiab lub puab tsaig ruaj khov yuav tsum tau rov qab los xyuas kom meej tias, ntxiv rau kev siv lub zog sib txuas ntawm cov khoom siv thaum lub puab tsaig phaj ua haujlwm, nws kuj tuaj yeem ua rau qee yam dabtsi yog khoov, uas tuaj yeem txhim kho lub peev xwm crushing zoo.
Rau me me thiab nruab nrab- lub puab tsaig crushers, txhawm rau txuas lub neej kev pabcuam ntawm lub puab tsaig phaj, lub puab tsaig phaj tuaj yeem tsim los ua cov duab sib luag kom nws tuaj yeem tig rov qab thaum qhov qis dua hnyav heev.
Rau loj lub puab tsaig crushers, lub puab tsaig daim hlau tuaj yeem tsim los ua ntau qhov sib luag los pab txhawb kev hloov cov khoom hnav thiab ua kom ntev lub neej ntawm cov phaj puab tsaig.
Thaum xaiv cov khoom siv lub puab tsaig, ZGMn13 tuaj yeem siv los ua cov khoom tseem ceeb ntawm lub puab tsaig phaj. Hom manganese steel no muaj zog toughness. Txawm hais tias nws hardness yog txo, nws muaj cov yam ntxwv ntawm kev ua hauj lwm txias hardening. Thaum lub sij hawm ua hauj lwm ntawm lub puab tsaig crusher, lub extrusion quab yuam endured los ntawm lub puab tsaig phaj ua rau nws yuav tsum tsis tu ncua nyem thiab hardened thaum lub sij hawm ua hauj lwm txheej txheem. Nws hnav thiab tawv kom txog thaum hnav tshaj qhov kev pab cuam txwv thiab muab pov tseg. Ntxiv rau, lwm yam xws li tus nqi yuav tsum tau txiav txim siab thaum xaiv cov khoom siv.
- Kev ceev faj thaum sib dhos lub puab tsaig phaj
Kev sib dhos ntawm lub puab tsaig phaj muaj kev cuam tshuam zoo rau nws lub neej kev pabcuam. Thaum sib dhos lub puab tsaig phaj, nws yog ib qho tsim nyog yuav tsum tau kho lub puab tsaig phaj ntawm lub puab tsaig txav tau thiab ruaj khov, thiab siv cov ntawv tooj liab, txhuas, zinc, thiab lwm yam kom tswj tau qhov sib npaug ntawm lub puab tsaig txav thiab ruaj khov. Txhawm rau kom tsis txhob muaj cov txheeb ze zawv zawg ntawm lub puab tsaig phaj thiab lub puab tsaig txav tau thiab ruaj khov thaum lub puab tsaig crusher ua haujlwm, ua rau lub puab tsaig phaj hnav lossis tawg, yog li txo qhov kev pab cuam lub neej ntawm lub puab tsaig phaj ntawm lub puab tsaig crusher.
- Kev txhim kho tsim nyog rau cov txheej txheem ua haujlwm
Thaum lub sij hawm ua hauj lwm ntawm lub puab tsaig crusher, cov khoom yog nyob rau hauv ncaj qha kev sib cuag nrog lub puab tsaig phaj, thiab lub puab tsaig phaj bears loj crushing quab yuam, tshwj xeeb tshaj yog rau tej cov ntaub ntawv uas muaj zog dua hardness. Lub zog muaj zog yuav ua rau lub mounting bolts ntawm lub puab tsaig phaj kom vibrate thiab loosen, yog li aggravating lub hnav ntawm lub puab tsaig phaj thiab txawm ntog los yog tawg.
Duma's Certifications
FAQ
Q: Dab tsi yog cov khoom siv zoo tshaj plaws rau lub puab tsaig phaj?
A: Cov hlau manganese siab (Mn18 lossis Mn22) feem ntau yog siv vim nws txoj haujlwm - hardening khoom raws li kev cuam tshuam.
Q: Lub puab tsaig lub puab tsaig yuav kav ntev npaum li cas?
A: Kev pabcuam lub neej nyob ntawm cov khoom siv tawv thiab qhov loj me, tab sis Duma lub puab tsaig phaj feem ntau kav ntev li 20-40% ntev dua li cov qauv qib.
Q: Koj puas tuaj yeem tsim lub puab tsaig phaj raws li kos duab lossis qauv?
A: Yog, Duma txhawb OEM thiab kev cai lub puab tsaig daim hlau raws li cov duab kos, hnav cov qauv, lossis cov ntaub ntawv crusher qauv.
Q: Thaum twg los xaiv siab manganese steel lub puab tsaig phaj?
Q: Dab tsi bearing yog siv nyob rau hauv lub puab tsaig crusher?
Q: Vim li cas Duma lub puab tsaig daim hlau kav ntev dua?
A: Nws yog kev sib xyaw ua ke ntawm peb Cov Kauj Ruam -Kev kho cua sov thiab tswj dej quenching. Qhov no ua kom cov manganese "nruj tab sis tsis nkig," tiv thaiv cov kab nrib pleb thaum muab kev hnav siab heev.
Q: Koj puas muab cov bolts thiab accessories?
A: Yog lawm, peb muab ib qho - nres kev daws teeb meem nrog rau lub puab tsaig lub puab tsaig, lub puab tsaig phaj, bolts, thiab txiv ntseej.
